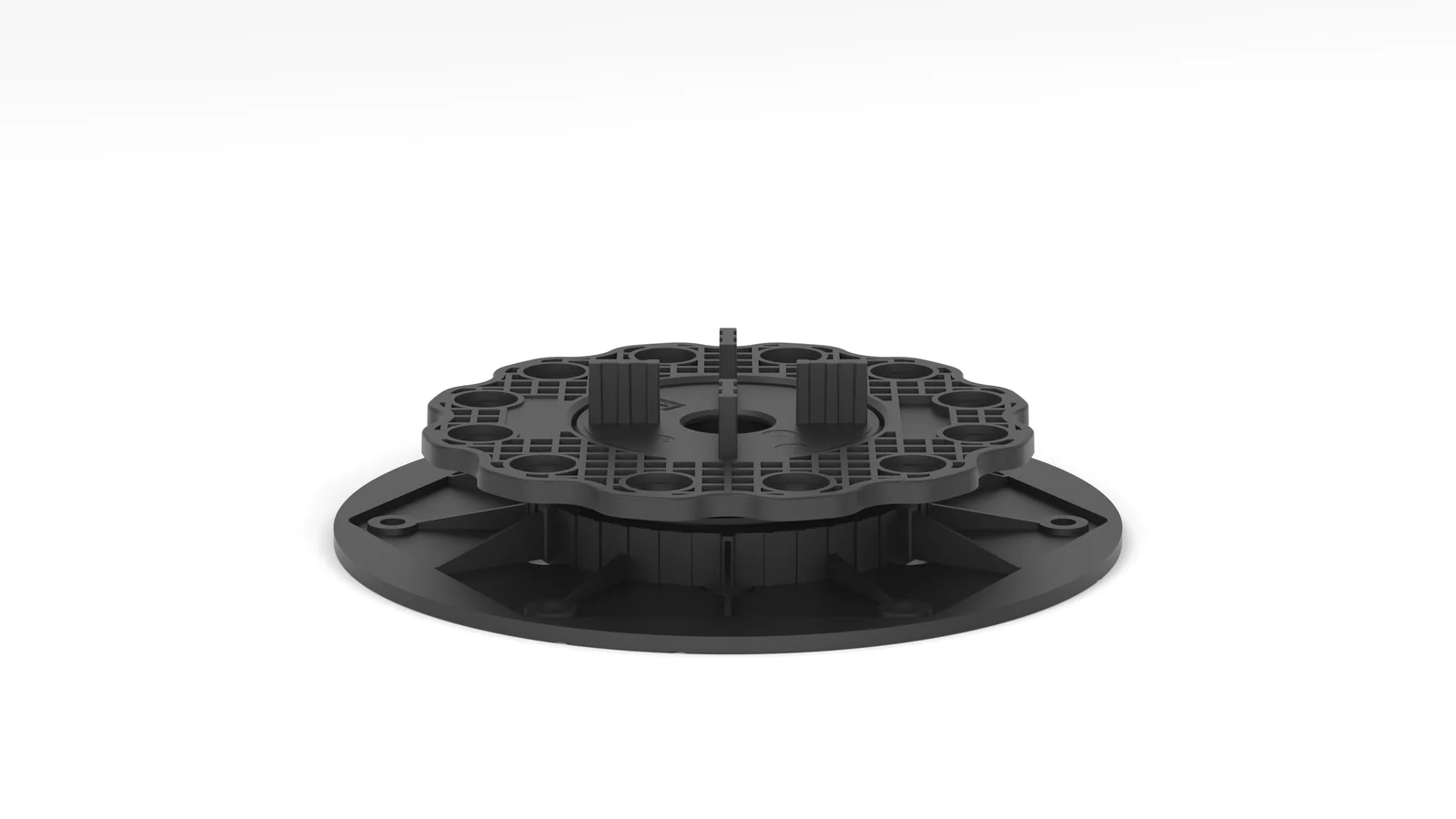

B Series Adjustable Pedestal
Cost-effective reinforced pedestals for rooftop terraces, balconies, commercial plazas and landscape paving.
B Series Adjustable Pedestal
The B Series is Homedin’s cost-effective regular pedestal system for raised outdoor floors. A traditional round-base heavy-duty design covers 20-260 mm across six models plus a 220 mm extender — ideal for price-sensitive projects and applications where a sturdy conventional appearance is preferred.
Technical specifications
| Material | Polypropylene (PP), outdoor-grade, UV-stabilised |
|---|---|
| Height adjustment | 20-260 mm (tool-free rotary); up to 480 mm with P-H-B220 extender |
| Head | Ø140 mm flower (plum) head with spacer tabs |
| Base | Ø200 mm round, anti-slip underside |
| Spacer tabs | 2 / 3 / 4 / 5 / 8 mm joint spacing |
| Temperature | −30 °C to +80 °C |
| Colour | Dark grey (custom lock-ring colours available) |
| Certifications | SGS load test · CE · RoHS · REACH · Utility-model patent |

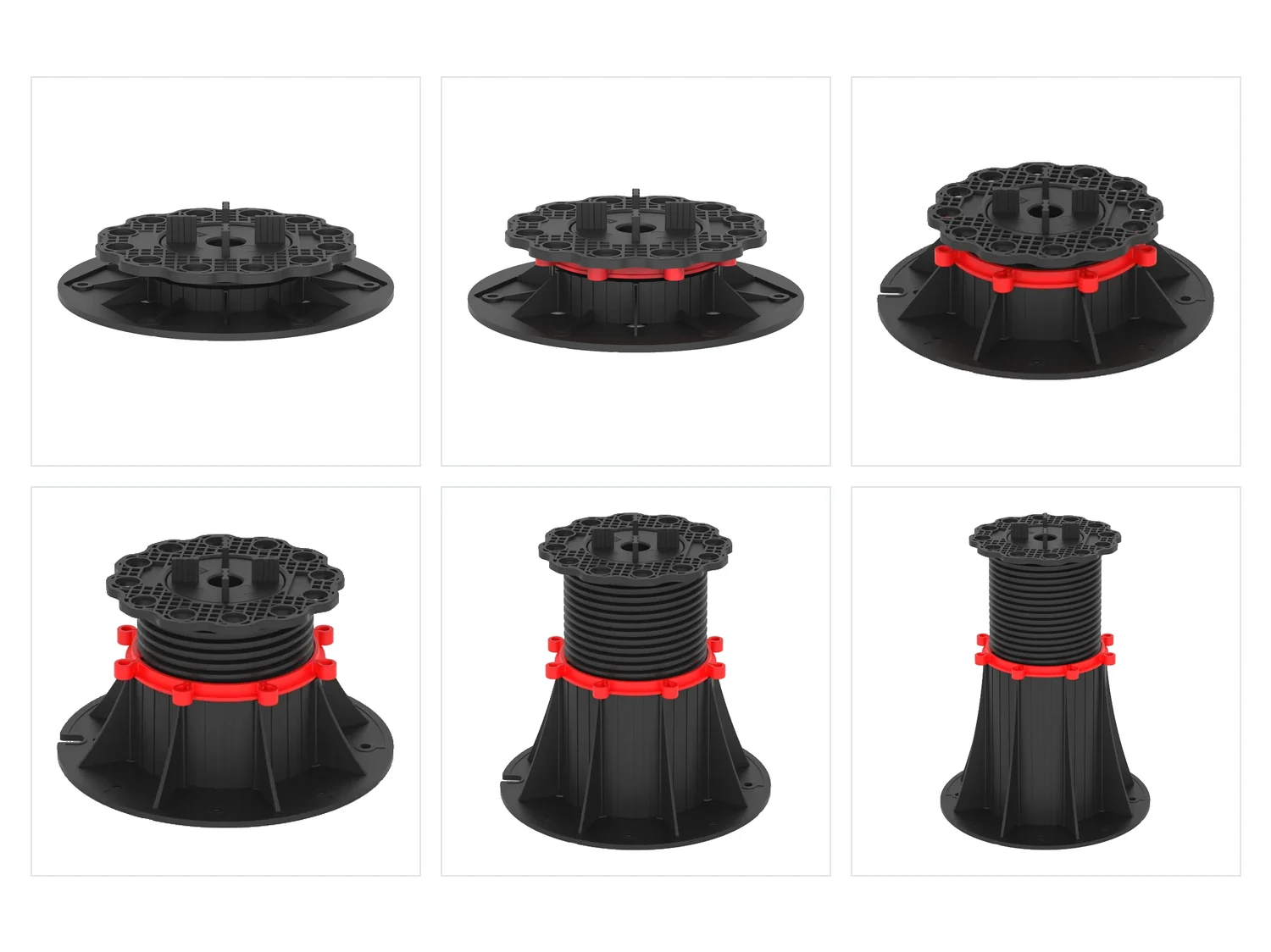

B Series Adjustable Pedestal — standard models
Six base models share one uniform 70×37.5×48 cm carton for simple palletisation and container planning. The P-H-B220 extender stacks onto any model to reach 480 mm.
| Model | Height range | Packing | Carton (cm) | CBM | G.W. (kg) |
|---|---|---|---|---|---|
| B-1 | 20-29 mm | 160 pcs/ctn | 70.0×37.5×48.0 | 0.126 | 7.00 |
| B-2 | 29-42 mm | 96 pcs/ctn | 70.0×37.5×48.0 | 0.126 | 21.12 |
| B-3 | 42-60 mm | 64 pcs/ctn | 70.0×37.5×48.0 | 0.126 | 22.38 |
| B-4 | 60-105 mm | 48 pcs/ctn | 70.0×37.5×48.0 | 0.126 | 20.00 |
| B-5 | 105-185 mm | 32 pcs/ctn | 70.0×37.5×48.0 | 0.126 | 17.30 |
| B-6 | 165-260 mm | 24 pcs/ctn | 70.0×37.5×48.0 | 0.126 | 16.15 |
| B-5-1 | 230-390 mm (ext.) | 32 pcs/ctn | 70.0×37.5×48.0 | 0.126 | 28.38 |
| P-H-B220 | +220 mm extender | 32 pcs/ctn | 70.0×37.5×48.0 | 0.126 | 13.06 |
Engineered for reliable raised-floor performance
Ø200 mm round base
Wide circular footprint distributes load evenly over the waterproof membrane and reduces point-load stress.
Ø140 mm flower head
Multi-point head accepts standard spacer tabs for uniform tile joints; compatible with joist cradles and slope correctors.
Tool-free adjustment
Rotate the body to set any height within the model range — no tools, fast to install and fine-tune on site.
Outdoor-grade PP
Polypropylene with UV stabilisers and outdoor additives. Resists moisture, frost and chemical cleaning agents.
P-H-B220 extender
Stack the 220 mm extender onto any B model to reach up to 480 mm without replacing the base unit.
Uniform carton size
All six models share one carton — simpler warehousing, logistics planning and container packing.
Automatic slope compensation for uneven substrates
The B Series supports rubber-coated (XA) and all-plastic (XB) self-leveling heads for automatic slope compensation on substrates up to ~5%.
XA-B — Rubber-coated head
Best for tile, stone and concrete pavers.
- Articulating ball joint (0-5% slope)
- TPE rubber insert for superior grip
- UV-stable, non-marking rubber
- Heights 20-105 mm (B-1 to B-4)
XB-B — Plastic head
Best for wood decking, timber and composite joists.
- All-plastic, corrosion-proof
- Articulating ball joint (0-5% slope)
- Cost-effective self-leveling option
- Heights 20-105 mm (B-1 to B-4)
Where the B Series is specified
From rooftop terraces to commercial plazas, the B Series covers the most common raised-floor scenarios.
| Application | Surface material | Recommended model | Key accessory |
|---|---|---|---|
| Rooftop terrace & balcony | Stone, porcelain tile, ceramic | B-1 / B-2 / B-3 | Spacer Tab + Slope Corrector |
| Commercial plaza & public landscape | Granite, concrete paver | B-3 / B-4 / B-5 | Spacer Tab |
| WPC decking on joists | WPC + aluminium/wood frame | B-1 / B-2 + Joist Cradle | Joist Cradle |
| Water feature & dry fountain | Stone, granite | B-3 / B-4 | Metal Clamp |
| Stage & exhibition booth | Plywood, composite panel | B-1 / B-2 | Joist Cradle |
| Sloped substrate | Any paver | XA-B / XB-B + Slope Corrector | Slope Corrector |
Build a complete support system
Real installations & product views
Spec the B Series for your project
Send us your slab format, finished floor height and load requirement — we will recommend the right model, accessories and packing plan.
Contact our teamFrequently Asked Questions
What is the B Series Adjustable Pedestal used for?
The B Series Adjustable Pedestal is an adjustable support pedestal that raises tiles, decking, timber or stone above the substrate to build a level, drained and ventilated raised floor. It is used on rooftops, terraces, balconies, plazas and pool decks.
What height range does the B Series Adjustable Pedestal cover?
The B Series adjusts from 20 mm to 260 mm with tool-free rotary adjustment, and reaches up to 480 mm when the P-H-B220 extender is stacked on any model.
How much load can the B Series Adjustable Pedestal support?
B Series supports are SGS load-tested at 2.5–3.5 tonnes per pedestal, suitable for heavy stone paving and busy commercial terraces.
Can the B Series Adjustable Pedestal be used on sloped or uneven surfaces?
Yes. The B Series accepts XA (rubber) and XB (plastic) self-leveling heads to compensate slopes up to 5%, and spacer tabs (2/3/4/5/8 mm) set consistent joint widths.
Are B Series Adjustable Pedestal certified for outdoor projects?
Yes. Bodies are UV-stabilised polypropylene rated −30 °C to +80 °C, verified by SGS load testing with CE, RoHS and REACH compliance, plus a utility-model patent.
