S Series Rubber Pedestal
Fixed-height rubber cushion pedestals for acoustic isolation, vibration damping and soft surface protection under raised floors and pavers.
S Series Rubber Pedestal
The S Series is Homedin’s fixed-height rubber pedestal system. Made from TPE / EPDM rubber compound, it delivers high load-bearing capacity with low odour, easy cutting, noise resistance and soft surface protection — ideal beneath pedestals and pavers.
Technical specifications
| Material | TPE / EPDM rubber compound |
|---|---|
| Pedestal thickness | 12.5 mm (150×150 mm footprint) |
| Shim pad | 1.5 mm (150×150 mm) |
| Load capacity | ≥3,152 kg at full surface (SGS, center) |
| Properties | High load-bearing, low odour, easy to cut, noise resistant |
| Function | Cushioning, vibration dampening, surface protection |
| Packing | 50 sets/carton (31.5×31.5×19.0 cm, 27.5 lbs) |
| Certifications | SGS · CE · RoHS · REACH · MSDS |

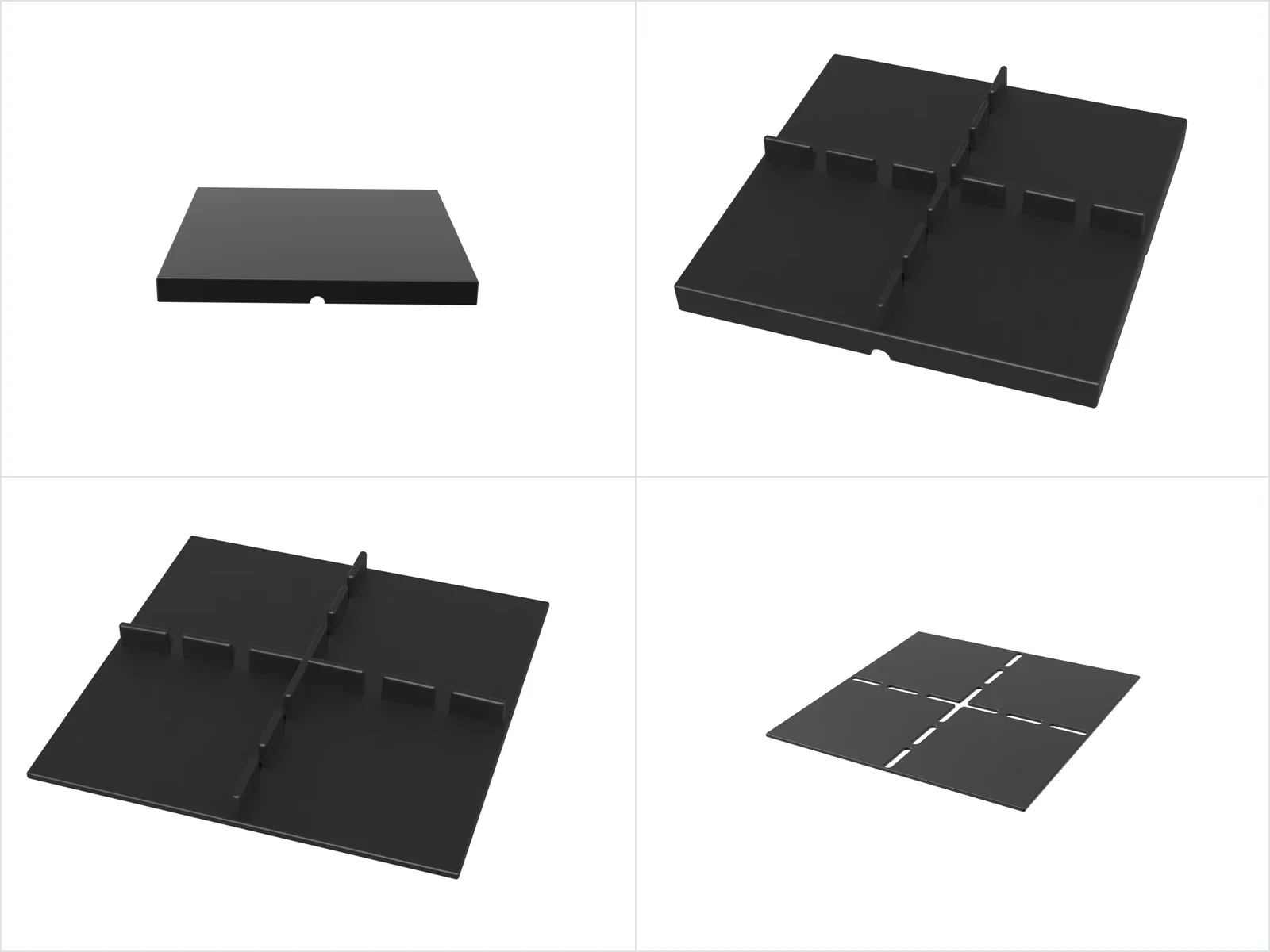

S Series Rubber Pedestal — standard models

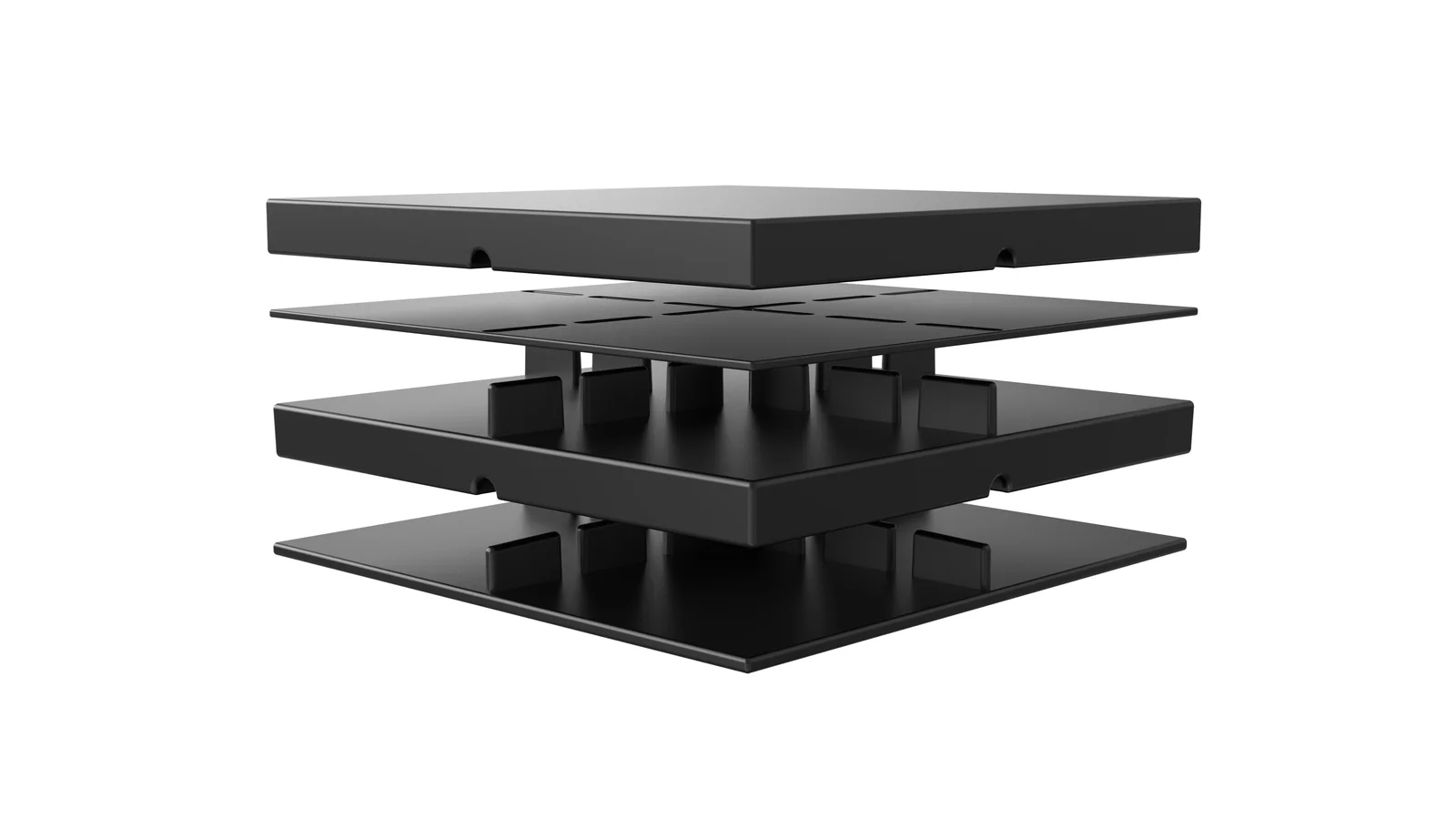

A simple two-part system: the 12.5 mm rubber pedestal plus a 1.5 mm shim pad for fine correction. Both share a 150×150 mm footprint.
| Item | Size | Thickness | Weight | Qty/Carton |
|---|---|---|---|---|
| 12.5 mm Rubber Pedestal | 150×150 mm | 12.5 mm | 0.55 lbs | 50 sets |
| Shim Pad | 150×150 mm | 1.5 mm | 0.22 lbs | 50 sets |
Engineered for reliable raised-floor performance
High load-bearing
SGS-tested to ≥3,152 kg at full surface — engineered for structural support under heavy pavers.
Noise resistant
Rubber compound dampens impact and footfall noise for acoustic comfort.
Easy to cut
Low-odour TPE/EPDM can be trimmed on site to fit corners and irregular layouts.
Soft surface protection
Protects waterproof membranes and finished surfaces from point-load and abrasion.
Vibration dampening
Absorbs vibration from foot traffic, plant and equipment on raised floors.
Stackable system
Pedestal + shim combine for quick height correction under any pedestal head.
Where the S Series is specified
Used wherever cushioning, acoustic isolation or membrane protection is required beneath raised floors.
| Application | Surface material | Recommended model | Key accessory |
|---|---|---|---|
| Stone / tile cushioning | Natural stone, ceramic | S pedestal + shim | Rubber Base Pad |
| Vibration dampening | Plant decks, terraces | S pedestal | Rubber Base Pad |
| Surface protection | Under pedestal heads | S pedestal | — |
| Rooftop gardens | Pavers over vegetation | S pedestal | Rubber Base Pad |
| Plaza decking | Granite / concrete | S pedestal + shim | Spacer Tab |
| Pool surrounds | Anti-slip tiles | S pedestal | Rubber Base Pad |
Build a complete support system
Real installations & product views
Spec the S Series for your project
Send us your slab format, finished floor height and load requirement — we will recommend the right model, accessories and packing plan.
Contact our teamFrequently Asked Questions
What is the S Series Rubber Pedestal used for?
The S Series Rubber Pedestal is an adjustable support pedestal that raises tiles, decking, timber or stone above the substrate to build a level, drained and ventilated raised floor. It is used on rooftops, terraces, balconies, plazas and pool decks.
What height range does the S Series Rubber Pedestal cover?
The S Series is a fixed-height 12.5 mm rubber pedestal (150×150 mm footprint) used beneath adjustable pedestals and pavers for cushioning and levelling.
How much load can the S Series Rubber Pedestal support?
The S Series rubber pedestal is SGS load-tested at ≥3,152 kg at full surface, providing dependable shock and point-load distribution.
Can the S Series Rubber Pedestal be used on sloped or uneven surfaces?
The S Series is a fixed 12.5 mm shim; for sloped substrates pair it with HOMEDIN XA/XB self-leveling heads on the adjustable pedestal above.
Are S Series Rubber Pedestal certified for outdoor projects?
Yes. Made from TPE / EPDM rubber compound, low-odour and easy to cut, certified by SGS, CE, RoHS, REACH and backed by an MSDS.
