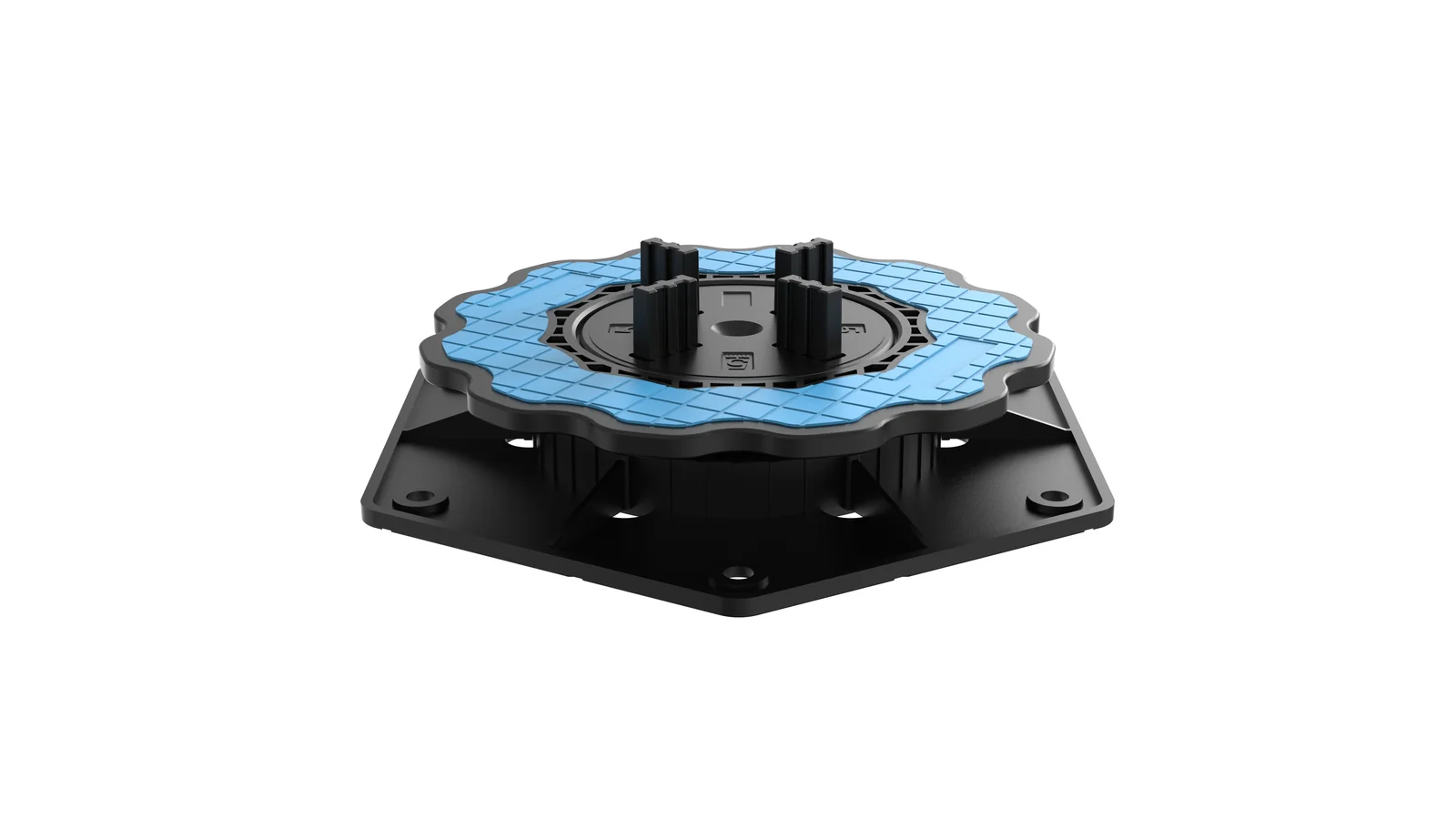

F Series Low-Profile Pedestal
Compact, low-profile pedestals for thin-deck applications — balcony pavers, pool surrounds, exhibition flooring and indoor-outdoor transitions.
F Series Low-Profile Pedestal
The F Series is Homedin’s compact, low-profile adjustable pedestal line. Five interlocking models cover 20-185 mm with tool-free rotary height adjustment, SGS-certified load performance, and a uniform 30 pcs/ctn pack across the entire series.
Technical specifications
| Material | PP + 10% glass fibre (GF), UV-stabilised |
|---|---|
| Height adjustment | 20-185 mm (tool-free rotary) |
| Head | Ø140 mm |
| Base | Ø150 mm outer diameter |
| Spacer tabs | 2 / 3 / 4 / 5 mm joint spacing |
| Temperature | −30 °C to +80 °C |
| Packing | Uniform 30 pcs/ctn across all models |
| Certifications | SGS load test · CE · RoHS · REACH |
F Series Low-Profile Pedestal — standard models

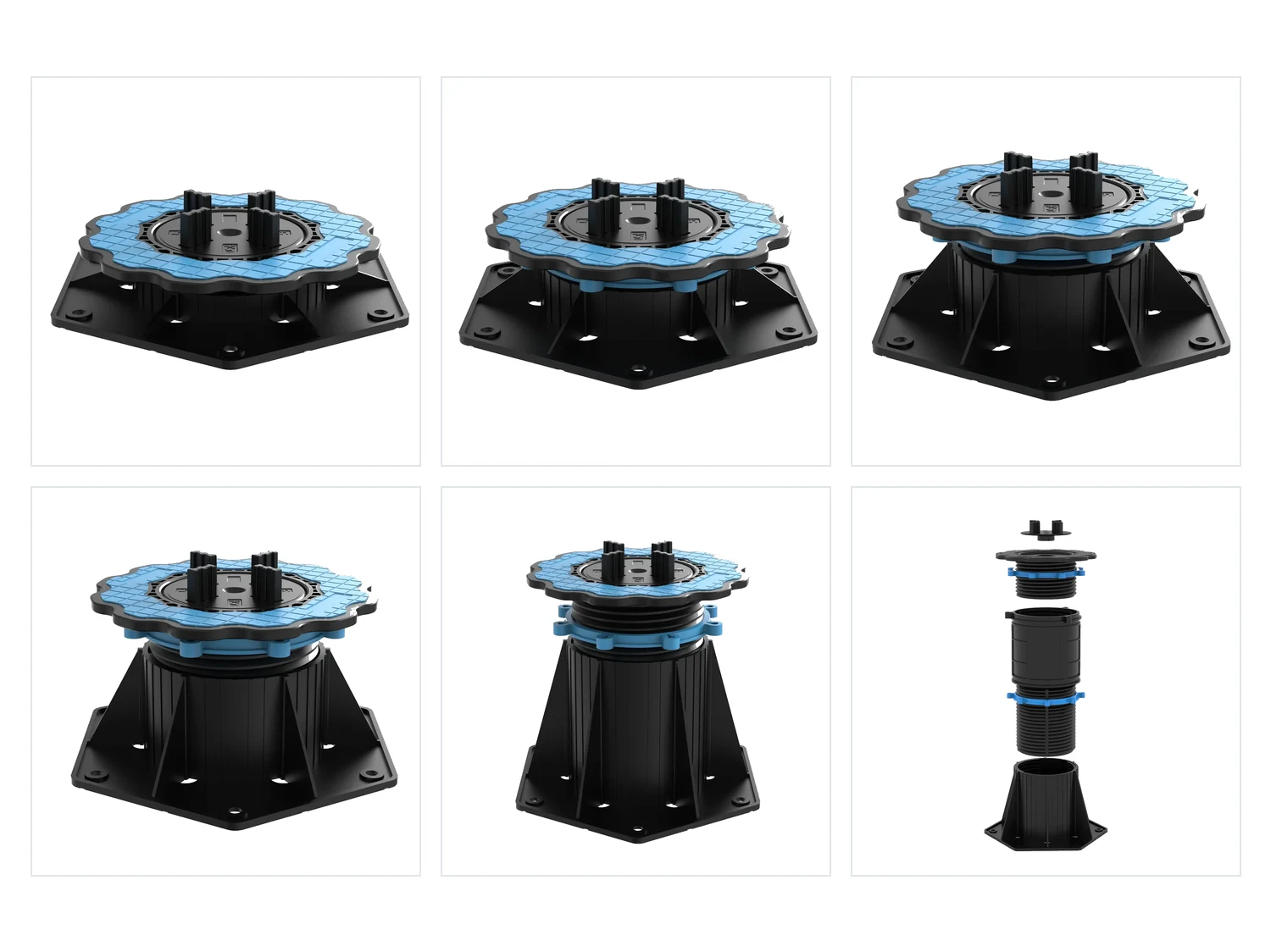

F-A through F-E form a continuous stackable range from 20 mm to 185 mm. All five models pack 30 pieces per carton for simplified pallet and container planning.
| Model | Height range | Packing | Carton (cm) | CBM | G.W. (kg) |
|---|---|---|---|---|---|
| F-A | 20-29 mm | 30 pcs/ctn | 55.0×32.0×12.0 | 0.021 | 6.00 |
| F-B | 29-42 mm | 30 pcs/ctn | 55.0×32.0×20.0 | 0.035 | 7.00 |
| F-C | 42-60 mm | 30 pcs/ctn | 54.0×32.0×27.0 | 0.047 | 8.00 |
| F-D | 60-105 mm | 30 pcs/ctn | 54.0×32.0×36.0 | 0.062 | 9.00 |
| F-E | 105-185 mm | 30 pcs/ctn | 54.0×32.0×58.0 | 0.100 | 11.80 |
Engineered for reliable raised-floor performance
Compact stackable body
One-piece moulded PP body with wide base. Small height increments make F ideal for thin-deck builds.
Tool-free adjustment
Rotate the body to set any height within range — millimetre precision, no tools required.
SGS-certified load
Tested at 2,200 kg (full surface) and 1,400 kg (1/4 surface) by SGS, an independent third-party lab.
Glass-fibre reinforced PP
90% PP + 10% glass fibre with UV stabilisers. Resists moisture, frost, chemicals and sun.
Consistent packing
All five models pack 30 pcs/ctn — uniform pallet planning and container loading.
Broad compatibility
Works with porcelain, stone, concrete pavers and decking joists; accepts all standard accessories.
Where the F Series is specified
Where headroom is tight but certified load performance is non-negotiable, the F Series is the right choice.
| Application | Surface material | Recommended model | Key accessory |
|---|---|---|---|
| Balcony / thin deck | Porcelain tiles | F-A / F-B | Spacer Tab + Slope Corrector |
| Residential terrace | Stone / porcelain pavers | F-C / F-D | Spacer Tab |
| Pool surround | Anti-slip tiles | F-C | Rubber Base Pad |
| Water feature | Natural stone slabs | F-D / F-E | Metal Clamp |
| WPC / wood decking | Composite / timber joists | F-B / F-C | Joist Cradle |
| Exhibition / stage floor | Plywood / composite panels | F-A / F-B | Joist Cradle |
| Green roof | Pavers over vegetation | F-C / F-D | Rubber Base Pad |
| Commercial plaza | Granite / concrete pavers | F-D / F-E | Slope Corrector |
Build a complete support system
Real installations & product views
Spec the F Series for your project
Send us your slab format, finished floor height and load requirement — we will recommend the right model, accessories and packing plan.
Contact our teamFrequently Asked Questions
What is the F Series Adjustable Pedestal used for?
The F Series Adjustable Pedestal is an adjustable support pedestal that raises tiles, decking, timber or stone above the substrate to build a level, drained and ventilated raised floor. It is used on rooftops, terraces, balconies, plazas and pool decks.
What height range does the F Series Adjustable Pedestal cover?
The F Series covers heights up to 185 mm with precision thread adjustment, ideal for low-profile balcony pavers and pool copings.
How much load can the F Series Adjustable Pedestal support?
F Series supports are SGS load-tested for full-surface support and built for residential and light-commercial decking and paving.
Can the F Series Adjustable Pedestal be used on sloped or uneven surfaces?
Yes. The F Series is self-leveling-head ready (XA rubber / XB plastic) to absorb slopes up to 5% on retrofit balconies and uneven substrates.
Are F Series Adjustable Pedestal certified for outdoor projects?
Yes. Bodies use UV-stabilised PP + 10% glass fibre, CE / RoHS / REACH compliant, with SGS load verification.
