HE Series Multi-Section Pedestal
Professional-grade deck & paving support — Homedin’s flagship system for rooftop terraces, commercial plazas and heavy-duty raised floors.

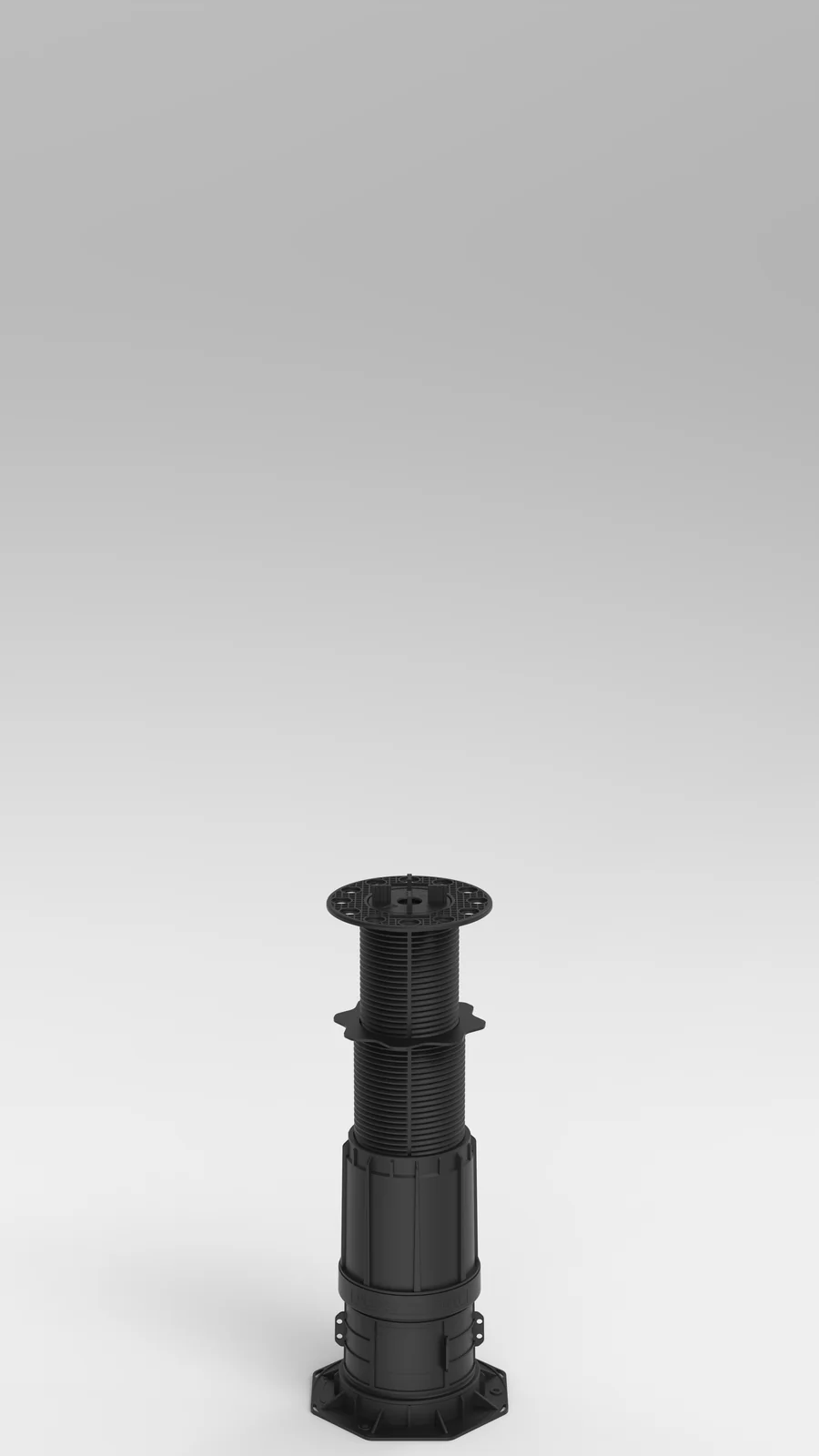

HE Series Multi-Section Pedestal
The HE Series is Homedin’s flagship adjustable pedestal line, engineered for professional deck and paving installations. Three core models cover 25-392 mm with SGS-certified load performance, precision thread adjustment and seamless compatibility with the full accessory ecosystem.
Technical specifications
| Material | PP + 10% glass fibre (GF), UV-stabilised |
|---|---|
| Height adjustment | 25-392 mm (precision thread + lock ring) |
| Head | Ø140 mm large head platform |
| Base | Octagonal 171.5 / 184 mm with drainage channels |
| Thread pitch | 6.0 mm/turn, lock ring prevents self-loosening |
| Temperature | −40 °C to +120 °C |
| Self-leveling | XA-HE / XB-HE ready (0-5% slope) |
| Certifications | SGS · CE · RoHS · REACH · 2 utility + 1 design patent |

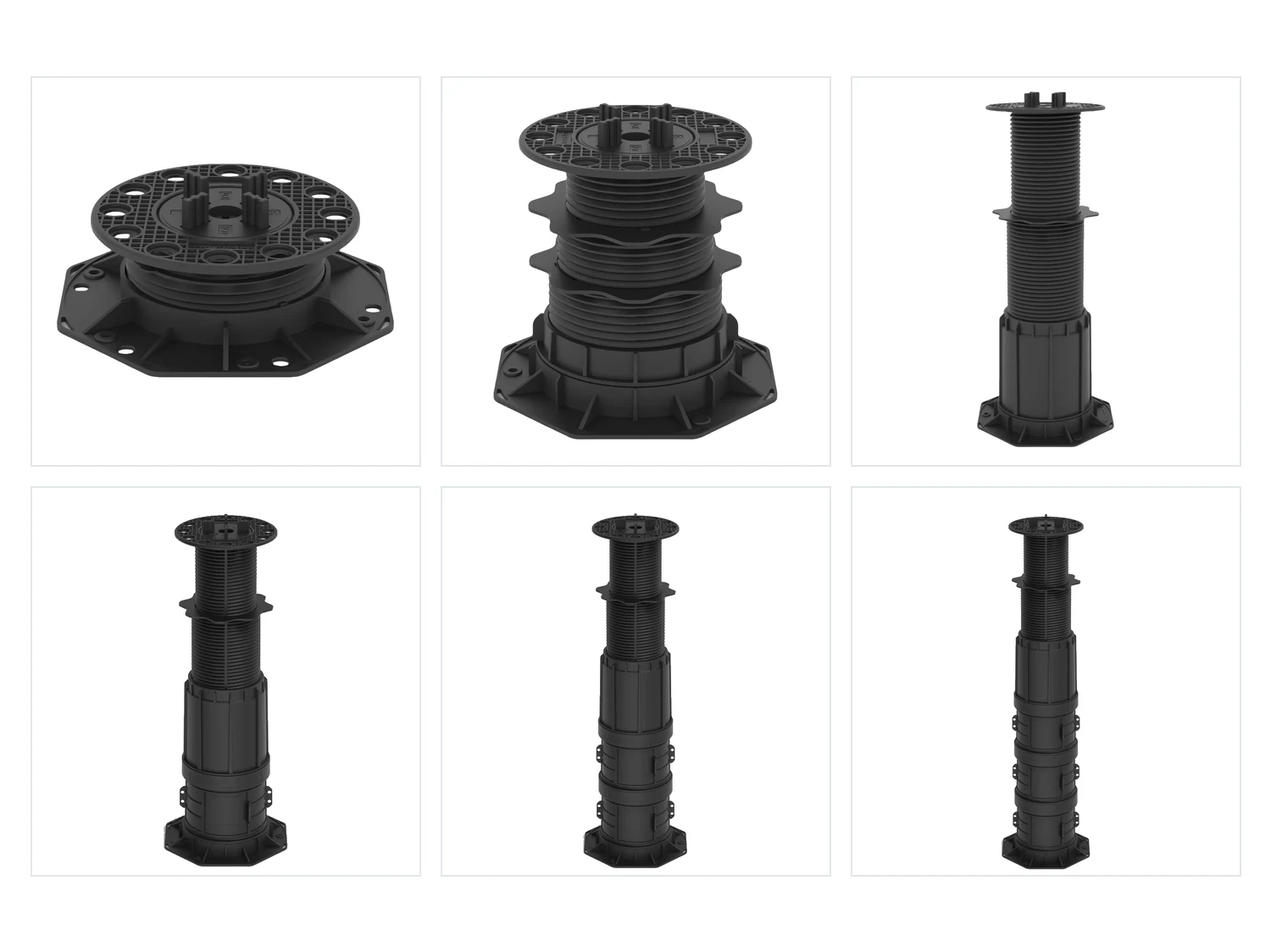

HE Series Multi-Section Pedestal — standard models
Three core models share the same head and octagonal base for uniform load distribution. P-H-H100 / P-H-H150 snap-on extension rings extend HE-3 up to 392 mm.
| Model | Height range | Qty/Ctn | Carton (cm) | CBM | G.W. (kg) |
|---|---|---|---|---|---|
| HE-1 | 25-52 mm | 36 pcs | 44.5×37.5×27.0 | 0.045 | 5.2 |
| HE-2 | 52-152 mm | 24 pcs | 50.0×40.0×32.0 | 0.064 | 7.2 |
| HE-3 | 152-242 mm | 12 pcs | 57.0×40.5×36.0 | 0.083 | 10.8 |
| P-H-H100 | +100 mm ext. | 36 pcs | 44.5×37.5×18.0 | 0.030 | 3.6 |
| P-H-H150 | +150 mm ext. | 36 pcs | 44.5×37.5×24.0 | 0.040 | 5.0 |
Engineered for reliable raised-floor performance
Ø140 mm large head
Oversized head ensures stable support and easy tile/joist positioning; compatible with all Homedin head accessories.
PP + 10% glass fibre
Reinforced polypropylene with UV stabilisers. Operating temperature −40 °C to +120 °C for outdoor longevity.
Precision thread adjustment
Fine-pitch thread allows millimetre-level height adjustment even under load; lock ring prevents self-loosening.
Octagonal base
Wide footplate distributes weight evenly; integrated drainage channels prevent water pooling; anti-slip ribs underneath.
Extension rings
P-H-H100 (+100 mm) and P-H-H150 (+150 mm) snap-on extensions stack to extend HE-3 to 392 mm.
Self-leveling ready
Supports XA (rubber) and XB (plastic) self-leveling heads; accommodates slopes up to 5%, retrofittable in the field.
Automatic slope compensation for uneven substrates
For sloped substrates up to 5%. Both types retrofit onto standard HE bases without tools, available in three height ranges matching HE-1/2/3.
XA-HE — Rubber grip head
Best for tile, stone & concrete pavers.
- TPE rubber insert for superior grip
- Articulating ball joint (0-5% slope)
- UV-stable, non-marking rubber
- Ranges: 25-52 / 52-152 / 152-392 mm
XB-HE — Plastic head
Best for wood decking, timber & composite joists.
- All-plastic, corrosion-proof
- Articulating ball joint (0-5% slope)
- Cost-effective self-leveling option
- Ranges: 25-52 / 52-152 / 152-392 mm
Where the HE Series is specified
Trusted by contractors and distributors in 15+ countries for the most demanding raised-floor projects.
| Application | Surface material | Recommended model | Key accessory |
|---|---|---|---|
| Rooftop terrace | Porcelain tiles | HE-2 + XA-HE-2 | Slope Corrector |
| Commercial plaza | Granite / concrete pavers | HE-3 | Spacer Tab |
| Balcony / residential | Composite decking | HE-1 / HE-2 | Joist Cradle |
| Pool surround | Anti-slip tiles | HE-2 | Rubber Base |

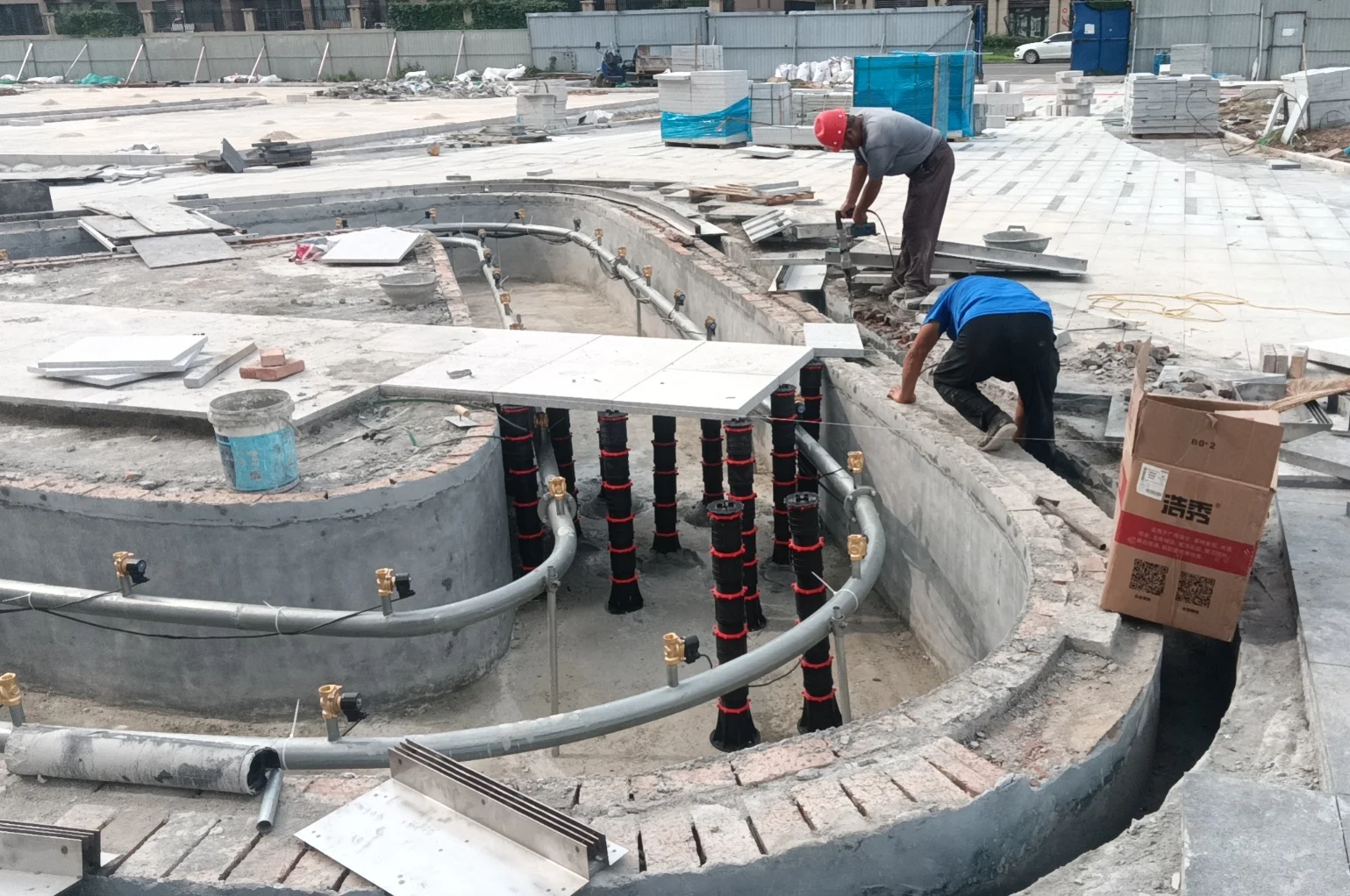

| Water feature | Stone slabs | HE-3 + Extension | Metal Clamp |
| Landscape paving | Concrete pavers | HE-2 / HE-3 | Slope Corrector |
| Stadium concourse | Heavy pavers | HE-3 + Extension | Wind-Proof Clip |
| Green roof | Pedestal + drainage | HE-3 + Extension | Rubber Base |
Build a complete support system

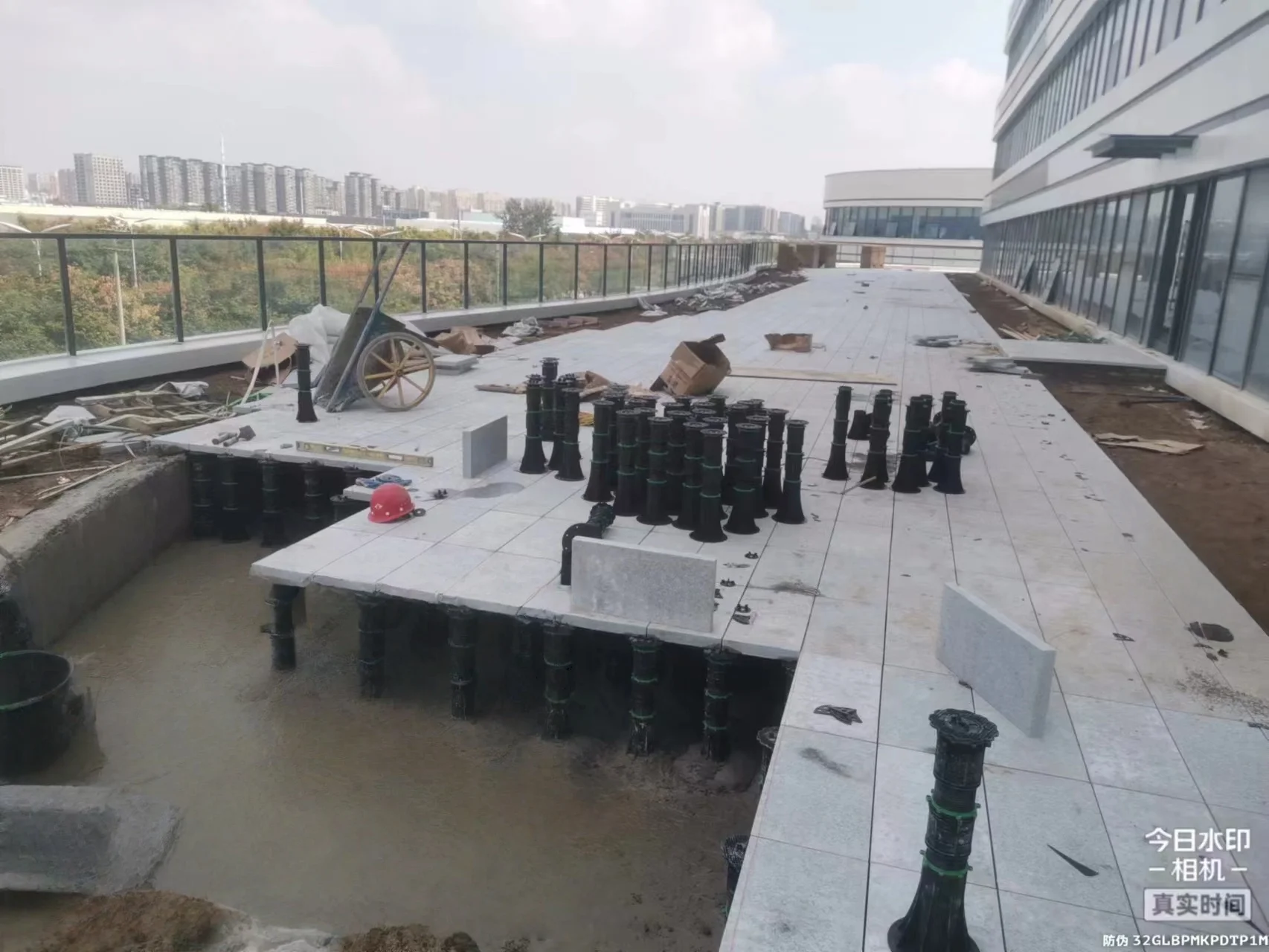

Real installations & product views
Spec the HE Series for your project
Send us your slab format, finished floor height and load requirement — we will recommend the right model, accessories and packing plan.
Contact our teamFrequently Asked Questions
What is the HE Series Multi-Section Pedestal used for?
The HE Series Multi-Section Pedestal is an adjustable support pedestal that raises tiles, decking, timber or stone above the substrate to build a level, drained and ventilated raised floor. It is used on rooftops, terraces, balconies, plazas and pool decks.
What height range does the HE Series Multi-Section Pedestal cover?
The HE Series adjusts from 25 mm to 392 mm using a precision thread plus lock ring; snap-on P-H-H100 (+100 mm) and P-H-H150 (+150 mm) extension rings extend HE-3 upward.
How much load can the HE Series Multi-Section Pedestal support?
HE Series supports are SGS-certified up to 2,000 kg per pedestal, engineered for heavy stone and commercial raised floors.
Can the HE Series Multi-Section Pedestal be used on sloped or uneven surfaces?
Yes. The HE Series supports XA-HE (rubber) and XB-HE (plastic) self-leveling heads that compensate slopes up to 5%, retrofittable in the field.
Are HE Series Multi-Section Pedestal certified for outdoor projects?
Yes. Bodies are PP + 10% glass fibre, rated −40 °C to +120 °C, with SGS, CE, RoHS and REACH certification plus 2 utility and 1 design patent.
